Ubwiherero bw'Abagore Bwiteguye Inzu
Igishushanyo mbonera cyubwiherero bwabagore mumazu ya GS cyabantu.Inzu irashobora kwimurwa muri rusange, cyangwa igapakirwa ikimurwa nyuma yo guterana, hanyuma igateranyirizwa hamwe ikongera igakoreshwa nyuma yo guhuzwa namazi n amashanyarazi.

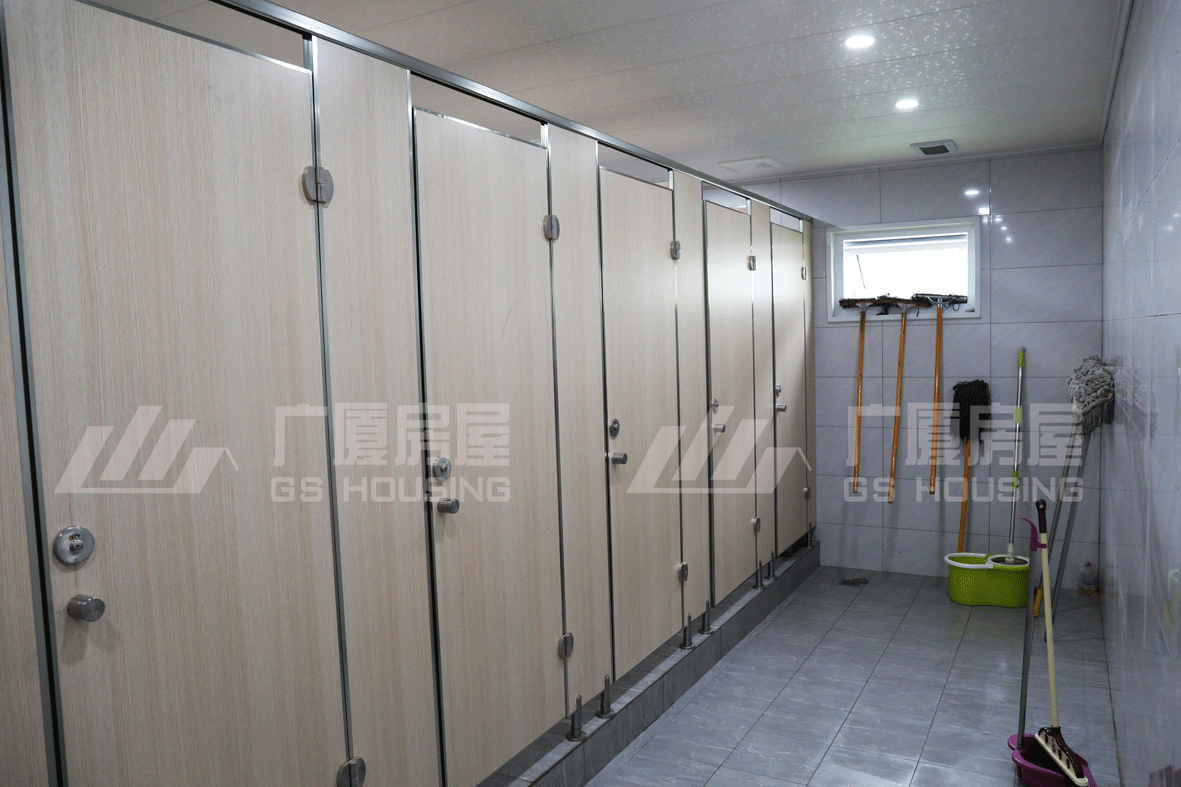

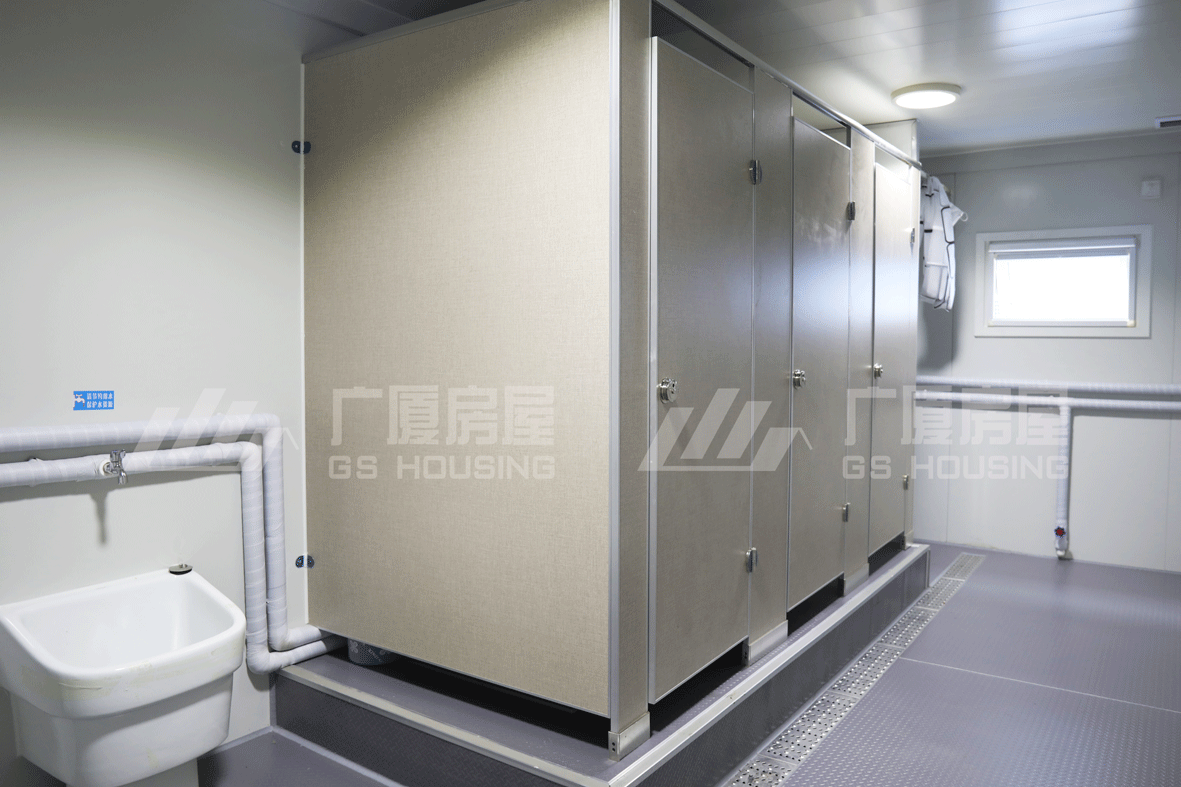

Ibikoresho by'isuku mu nzu isanzwe y’ubwiherero bw’abagore birimo 5pcs yogeramo ubwiherero n’ibigega by’amazi, 1pcs mop sink na robine, 1pcs inkingi ya robine na robine, imbere imbere hashobora gukorwa hakurikijwe ibisabwa bitandukanye byumushinga.
Mubyongeyeho, ubugari busanzwe bwinzu yo kwiyuhagiriramo ni 2.4 / 3M, inzu nini cyangwa ntoya ishobora gutegurwa.
Ibikoresho by'isuku
Inzego Zisanzwe
Ikadiri yo hejuru
Igiti nyamukuru:
3.0mm yubushyuhe bwa galvanised ubukonje buzengurutse ibyuma, ibikoresho: SGC340;
Sub-beam: ifata 7pcs galvanizing ibyuma, ibikoresho: Q345B, intera: 755mm.
Ubunini bwamazu yisoko modular ni 2.5-2.7mm, ubuzima bwa serivisi ni imyaka 15.tekereza umushinga wo hanze, kubungabunga ntabwo byoroshye, twagabanije ibyuma byamazu byamazu, imyaka 20 ikoreshwa neza.
Ikadiri hepfo:
Igiti nyamukuru:
Uburebure bwa mmmm 3,5mm yerekana ibyuma bikonje, ibikoresho: SGC340;
Sub-beam: 9pcs "π" wanditse ibyuma bya galvanizing, ibikoresho: Q345B,
Ubunini bwamazu yisoko modular ni 2.5-2.7mm, ubuzima bwa serivisi ni imyaka 15.tekereza umushinga wo hanze, kubungabunga ntabwo byoroshye, twagabanije ibyuma byamazu byamazu, imyaka 20 ikoreshwa neza.
Inkingi:
3.0mm Galvanised ubukonje buzengurutse ibyuma, ibikoresho: SGC440, inkingi enye zirashobora guhinduranya.
Inkingi zahujwe n'ikadiri yo hejuru hamwe n'ikadiri yo hepfo hamwe na Hexagon umutwe (imbaraga: 8.8)
Menya neza ko insulasiyo yuzuye yuzuzwa nyuma yo kurangiza gushiraho inkingi.
Ongeramo kaseti ikingira hagati yububiko hamwe nimbaho zurukuta kugirango wirinde ingaruka zikiraro gikonje nubushyuhe no kunoza imikorere yo kubungabunga ubushyuhe no kuzigama ingufu.
Ikibaho:
Umubyimba: 60-120mm yuburebure bwamabara yicyuma sandwich,
Ikibaho cyo hanze: Ikibaho cyo hanze gikozwe muburyo bwa 0.42mm ya orange igishishwa cya orange Alu-zinc icyapa cyamabara, icyuma cya HDP,
Igikoresho cyo kubika: mm 60-120 mm z'uburebure bwa hydrophobi basalt ubwoya (kurengera ibidukikije), ubucucike ≥100kg / m³, imikorere yo gutwika ni Icyiciro A kidashya.
Urukuta rw'imbere: Ikibaho cy'imbere cyakira 0.42mm isukuye neza Alu-zinc isahani y'amabara, icyuma cya PE, ibara: ibara ryera,
Kugenzura ibicuruzwa ibicuruzwa byashyushye, gukora amajwi.
Inzu y'Ubwiherero bw'Abagore Gusaba
Kwinjiza inzu yubwiherero biragoye kuruta amazu asanzwe, ariko dufite amabwiriza arambuye yo gushiraho hamwe na videwo, kandi videwo yo kumurongo irashobora guhuzwa kugirango ifashe abakiriya gukemura ikibazo cyo kwishyiriraho, byanze bikunze, abashinzwe kwishyiriraho barashobora koherezwa kurubuga. niba bikenewe.
Hano hari abakozi barenga 360 babigize umwuga bashira abakozi mumazu ya GS, abarenga 80% bakorerwa mumazu ya GS mumyaka 8.Kugeza ubu, bashizeho imishinga irenga 2000 neza.
Umusaruro Wibanze Intangiriro
Ibigo bitanu by’imyubakire ya GS bifite ubushobozi buri mwaka bwo kubyaza umusaruro amazu arenga 170.000, ubushobozi bukomeye bwo gukora no gukora butanga inkunga ikomeye ku musaruro w’amazu.Kimwe ninganda zateguwe nubwoko bwubusitani, ibidukikije ni byiza cyane, Nibinini binini kandi bigezweho byubaka ibicuruzwa byubushinwa mubushinwa.Hashyizweho ikigo cyihariye cyubushakashatsi bwimyubakire yimyubakire kugirango giha abakiriya umutekano, ibidukikije, urugwiro, ubwenge kandi byiza byubatswe hamwe.
Uruganda rukora-uruganda rukora ibicuruzwa muri Tianjin
Igifuniko: 130.000㎡
Ubushobozi bwo gukora buri mwaka: amazu 50.000 yashyizweho
Uruganda rwubwoko bwubusitani- ishingiro ryumusaruro muri Jiangsu
Igifuniko: 80.000㎡
Ubushobozi bwo gukora buri mwaka: amazu 30.000 yashizweho
6S uruganda rwicyitegererezo- ishingiro ryumusaruro muri Guangdong
Igipfukisho: 90.000 ㎡
Ubushobozi bwo gukora buri mwaka: amazu 50.000 yashyizweho
Uruganda rukora neza-ruganda muri Liaoning
Igipfukisho: 60.000㎡
Ubushobozi bwo gukora buri mwaka: amazu 20.000 yashizweho.
Uruganda rwibidukikije-umusaruro muri Sichuan
Igipfukisho: 60.000㎡
Ubushobozi bwo gukora buri mwaka: amazu 20.000 yashizweho.
Imyubakire ya GS ifite imirongo igezweho yo gutunganya amazu yimyubakire, harimo umurongo wuzuye wibikoresho byububiko byikora, Graphene electrostatic spray coating imirongo, amahugurwa yigenga yerekana umwirondoro, urugi nidirishya ryamadirishya, amahugurwa yimashini, amahugurwa yo guterana, imashini zikata ibyuma bya CNC byikora, hamwe no gukata laser imashini, portal yarengeje imashini yo gusudira arc, karuboni ya dioxyde ikingira gusudira, imashini zikubita cyane, imashini zogosha imbeho, imashini zisya, imashini zogosha za CNC n’imashini zogosha n'ibindi. Umusaruro wa CNC, wemeza ko amazu yakozwe mugihe, neza kandi neza.
| Inzu yubwiherero bwumugore | ||
| Ibisobanuro | L * W * H （mm） | Ingano yo hanze 6055 * 2990/2435 * 2896 Ingano yimbere 5845 * 2780/2225 * 2590 ingano yihariye irashobora gutangwa |
| Ubwoko bw'inzu | Igisenge kibase gifite imiyoboro ine yimbere (Imiyoboro ya Drain-pipe: 40 * 80mm) | |
| Ububiko | ≤3 | |
| Itariki yo gushushanya | Ubuzima bwa serivisi bwateguwe | Imyaka 20 |
| Igorofa nzima | 2.0KN / ㎡ | |
| Igisenge kizima | 0.5KN / ㎡ | |
| Ikirere | 0.6KN / ㎡ | |
| Sersmic | Impamyabumenyi 8 | |
| Imiterere | Inkingi | Ibisobanuro: 210 * 150mm, Ibyuma bikonje bikonje, t = 3.0mm Ibikoresho: SGC440 |
| Igiti kinini | Ibisobanuro: 180mm, Ibyuma bikonje bikonje, t = 3.0mm Ibikoresho: SGC440 | |
| Igorofa nyamukuru | Ibisobanuro: 160mm, Ibyuma bikonje bikonje, t = 3.5mm Ibikoresho: SGC440 | |
| Igiti cyo hejuru | Ibisobanuro: C100 * 40 * 12 * 2.0 * 7PCS, Galvanized umuzingo ukonje C ibyuma, t = 2.0mm Ibikoresho: Q345B | |
| Igorofa | Ibisobanuro: 120 * 50 * 2.0 * 9pcs, "TT" ishusho ikanda ibyuma, t = 2.0mm Ibikoresho: Q345B | |
| Irangi | Ifu ya electrostatike itera spray lacquer≥80μm | |
| Igisenge | Ikibaho | 0.5mm Zn-Al yometseho amabara y'icyuma, cyera-imvi |
| Ibikoresho byo kubika | 100mm y'ibirahuri by'ubwoya hamwe na Al foil imwe.ubucucike ≥14kg / m³, Urwego A Ntirwaka | |
| Ceiling | V-193 0.5mm yakandagiye Zn-Al yometseho urupapuro rwamabara, icyuma cyihishe, cyera-cyera | |
| Igorofa | Igorofa | 2.0mm ikibaho cya PVC, imvi zijimye |
| Shingiro | 19mm ya sima ya fibre fibre, ubucucike1.3g / cm³ | |
| Ubushuhe | Filime idafite plastike | |
| Isahani yo gufunga hepfo | 0.3mm Zn-Al ikibaho | |
| Urukuta | Umubyimba | 75mm yibyuma byamabara yicyuma sandwich;Isahani yo hanze: 0.5mm ya orange igishishwa cya aluminiyumu isize zinc ibara ryamabara yicyuma, amahembe yinzovu, PE;Isahani y'imbere: 0.5mm aluminium-zinc isize isahani isukuye y'ibyuma by'amabara, imvi zera, PE ikingira;Emera ubwoko bwa "S" ucomeka kugirango ukureho ingaruka zikiraro gikonje kandi gishyushye |
| Ibikoresho byo kubika | ubwoya bw'urutare, ubucucike100kg / m³, Urwego A Ntirwaka | |
| Urugi | Ibisobanuro （mm） | W * H = 840 * 2035mm |
| Ibikoresho | Icyuma | |
| Idirishya | Ibisobanuro （mm） | Idirishya ： WXH = 800 * 500 ； |
| Ibikoresho | Ibyuma bya pasitike, 80S, Hamwe ninkoni yo kurwanya ubujura, Idirishya ritagaragara | |
| Ikirahure | 4mm + 9A + 4mm ikirahure kabiri | |
| Amashanyarazi | Umuvuduko | 220V ~ 250V / 100V ~ 130V |
| Umugozi | Umugozi nyamukuru: 6㎡, insinga ya AC: 4.0㎡, insinga ya sock: 2.5㎡, insinga yumucyo: 1.5㎡ | |
| Kumena | Miniature yamashanyarazi | |
| Amatara | Amatara abiri azenguruka, 18W | |
| Sock | 2c | |
| Gutanga Amazi & Sisitemu | Sisitemu yo gutanga amazi | DN32, PP-R, Umuyoboro wo gutanga amazi nibikoresho |
| Sisitemu yo kuvoma amazi | De110 / De50, UPVC Umuyoboro wamazi wamazi hamwe nibikoresho | |
| Ikaramu | Ibikoresho | Umuyoboro wa kare wa galvanised 口 40 * 40 * 2 |
| Shingiro | 19mm ya sima ya fibre fibre, ubucucike1.3g / cm³ | |
| Igorofa | Uburebure bwa 2.0mm butanyerera hasi ya PVC, imvi zijimye | |
| Ibikoresho by'isuku | Ibikoresho by'isuku | Ubwiherero 5 bwo guswera hamwe n'ibigega by'amazi, sink ya mop 1 na robine, ibase 2 yinkingi na robine |
| Igice | 1200 * 900 * 1800 Kwigana ibiti by'ibiti bigabanijwe, ikarita ya aluminiyumu ikarito, icyuma kidafite ingese | |
| Ibikoresho | Agasanduku ka pcs 1, indorerwamo 2 zo mu bwiherero, ibyuma bitagira umwanda, ibyuma bitagira umuyonga, pcs 1 zihagarara hasi | |
| Abandi | Hejuru n'inkingi birimbisha igice | 0,6mm Zn-Al yometseho ibara ryicyuma, cyera-cyera |
| Kwikinisha | 0.8mm Zn-Al yometseho ibara ryicyuma, cyera-imvi | |
| Gufunga imiryango | 1 pc Ifunga Urugi, Aluminium (bidashoboka) | |
| Umufana | 1 pcs urukuta rwumuyaga, umuyaga udafite ibyuma | |
| Kwemeza kubaka bisanzwe, ibikoresho nibikoresho bihuye nibipimo byigihugu.kimwe na, ingano yihariye nibikoresho bifitanye isano birashobora gutangwa ukurikije ibyo ukeneye. | ||
